BOP Control Hose

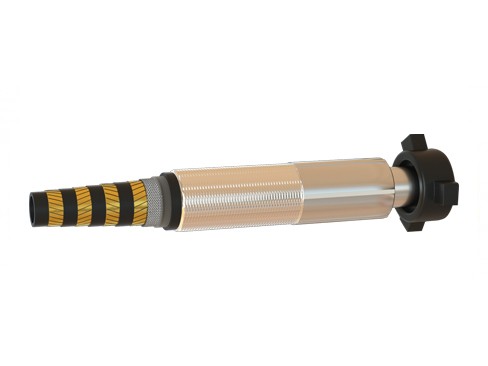

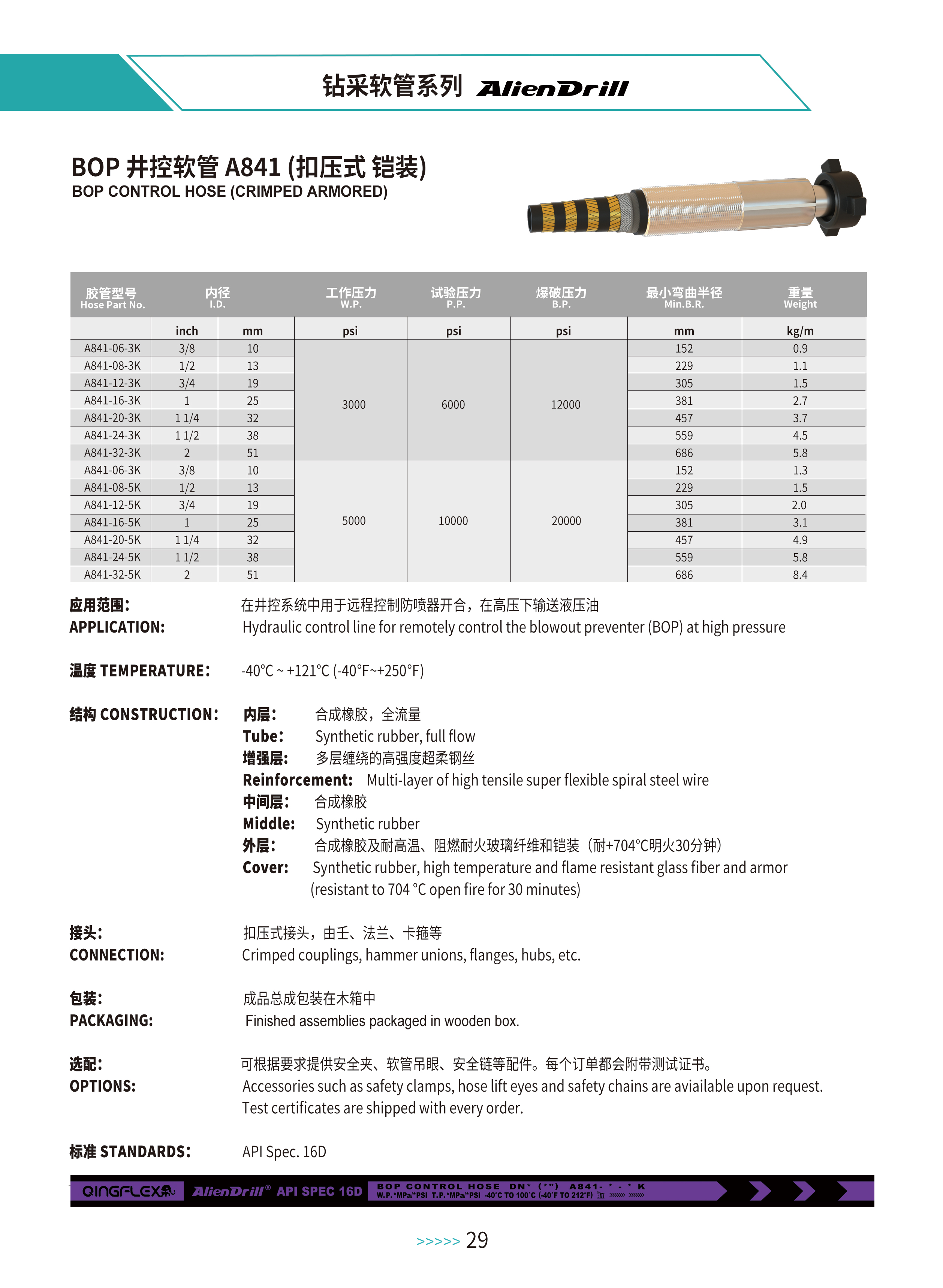

BOP Control Hose (Crimped Armored)A841
APPLICATION: Hydraulic control line for remotely control the blowout preventer (BOP) at high pressure
TEMPERATURE: -40℃ ~ +121℃ (-40℉~+250℉)
CONSTRUCTION:
Tube: Synthetic rubber, full flow
Reinforcement: Multi-layer of high tensile super flexible spiral steel wire
Middle: Synthetic rubber
Cover: Synthetic rubber, high temperature and flame resistant glass fiber and armor
(resistant to 704 °C open fire for 30 minutes)
TEMPERATURE: -40℃ ~ +121℃ (-40℉~+250℉)
CONSTRUCTION:
Tube: Synthetic rubber, full flow
Reinforcement: Multi-layer of high tensile super flexible spiral steel wire
Middle: Synthetic rubber
Cover: Synthetic rubber, high temperature and flame resistant glass fiber and armor
(resistant to 704 °C open fire for 30 minutes)
STANDARDS: API Spec. 16D
Product Details
APPLICATION: Hydraulic control line for remotely control the blowout preventer (BOP) at high pressure
TEMPERATURE: -40℃ ~ +121℃ (-40℉~+250℉)
CONSTRUCTION:
Tube: Synthetic rubber, full flow
Reinforcement: Multi-layer of high tensile super flexible spiral steel wire
Middle: Synthetic rubber
Cover: Synthetic rubber, high temperature and flame resistant glass fiber and armor
(resistant to 704 °C open fire for 30 minutes)
TEMPERATURE: -40℃ ~ +121℃ (-40℉~+250℉)
CONSTRUCTION:
Tube: Synthetic rubber, full flow
Reinforcement: Multi-layer of high tensile super flexible spiral steel wire
Middle: Synthetic rubber
Cover: Synthetic rubber, high temperature and flame resistant glass fiber and armor
(resistant to 704 °C open fire for 30 minutes)
STANDARDS: API Spec. 16D
We can produce rubber acid Frac Hose (acid Frac Hose, Frac Hose, acid frack hose) to instead of the iron pipe, please check A801F item.
acid fracturing hose, acid Frac Hose, Frac Hose, frack hose, acid frack hose.
API 7K, API 16C, mud and cement hose, rotary drilling and vibrator hose, choke and kill hose, BOP control hose, slim hole rotary hose, Kelly hose, flange, hammer union.
