API 17K

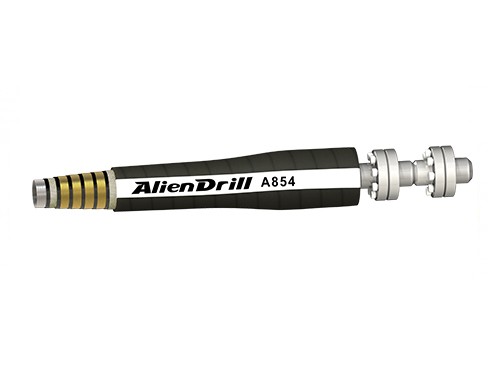

Fire-Rated Tensioner Hose (Built-in)A854
APPLICATION: Flexible connection between the upper end of the standpipe and the top drive/swivel and between the
pump and the lower end of the standpipe for pumping mud at high pressure in oil drilling and
exploration work.
TEMPERATURE: -25℃ ~ +82℃ (-13℉~+179.6℉) range I, FSL1
CONSTRUCTION:
Tube: Stainless steel carcass, H2S, oil, crosion, high temp., gas permeation resistant synthetic rubber
Reinforcement: High strength steel cable
Middle: Synthetic rubber
Cover: Flame resistant glass fiber, abrasion, oil and weather resistant synthetic rubber
pump and the lower end of the standpipe for pumping mud at high pressure in oil drilling and
exploration work.
TEMPERATURE: -25℃ ~ +82℃ (-13℉~+179.6℉) range I, FSL1
CONSTRUCTION:
Tube: Stainless steel carcass, H2S, oil, crosion, high temp., gas permeation resistant synthetic rubber
Reinforcement: High strength steel cable
Middle: Synthetic rubber
Cover: Flame resistant glass fiber, abrasion, oil and weather resistant synthetic rubber
STANDARDS: API Spec. 7K / 17K
Product Details
APPLICATION: Flexible connection between the upper end of the standpipe and the top drive/swivel and between the
pump and the lower end of the standpipe for pumping mud at high pressure in oil drilling and
exploration work.
TEMPERATURE: -25℃ ~ +82℃ (-13℉~+179.6℉) range I, FSL1
CONSTRUCTION:
Tube: Stainless steel carcass, H2S, oil, crosion, high temp., gas permeation resistant synthetic rubber
Reinforcement: High strength steel cable
Middle: Synthetic rubber
Cover: Flame resistant glass fiber, abrasion, oil and weather resistant synthetic rubber
pump and the lower end of the standpipe for pumping mud at high pressure in oil drilling and
exploration work.
TEMPERATURE: -25℃ ~ +82℃ (-13℉~+179.6℉) range I, FSL1
CONSTRUCTION:
Tube: Stainless steel carcass, H2S, oil, crosion, high temp., gas permeation resistant synthetic rubber
Reinforcement: High strength steel cable
Middle: Synthetic rubber
Cover: Flame resistant glass fiber, abrasion, oil and weather resistant synthetic rubber
STANDARDS: API Spec. 7K / 17K
We can produce rubber acid Frac Hose (acid Frac Hose, Frac Hose, acid frack hose) to instead of the iron pipe, please check A801F item.
acid fracturing hose, acid Frac Hose, Frac Hose, frack hose, acid frack hose.
API 7K, API 16C, mud and cement hose, rotary drilling and vibrator hose, choke and kill hose, BOP control hose, slim hole rotary hose, Kelly hose, flange, hammer union.
