API-7K Rotary Drilling and Vibrator Hose

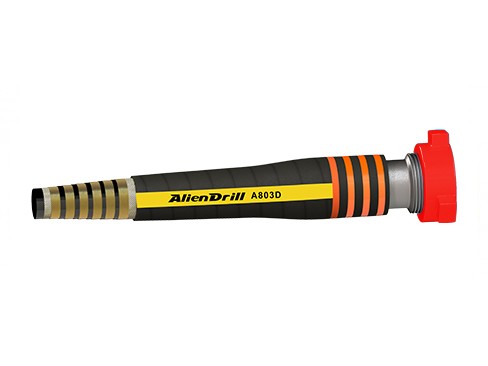

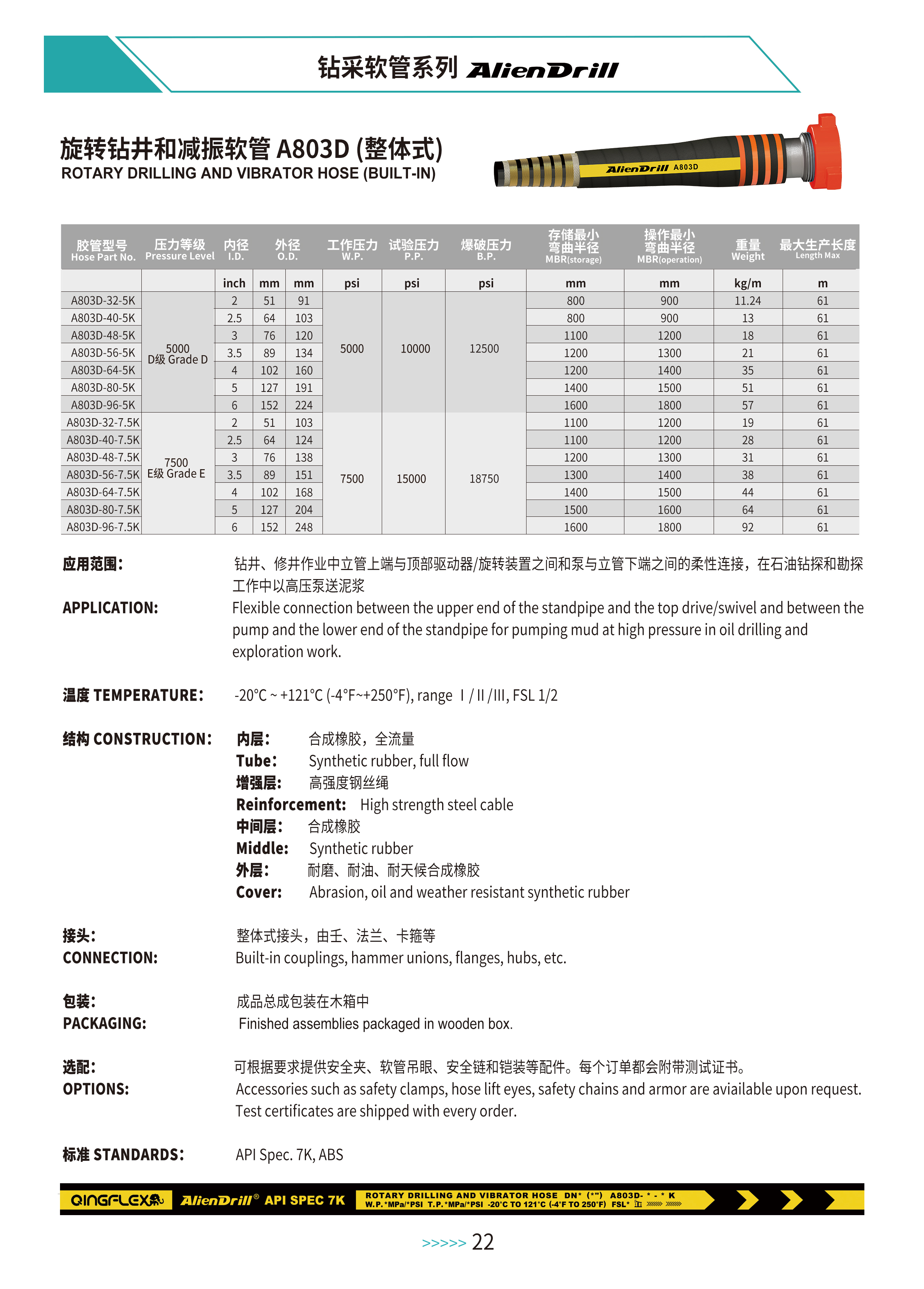

Rotary Drilling and Vibrator Hose (Built-in)A803D
APPLICATION: Flexible connection between the upper end of the standpipe and the top drive/swivel and between the
pump and the lower end of the standpipe for pumping mud at high pressure in oil drilling and
exploration work.
TEMPERATURE: -20℃ ~ +121℃ (-4℉~+250℉), range Ⅰ/Ⅱ/Ⅲ, FSL 1/2
CONSTRUCTION:
Tube: Synthetic rubber, full flow
Reinforcement: High strength steel cable
Middle: Synthetic rubber
Cover: Abrasion, oil and weather resistant synthetic rubber
pump and the lower end of the standpipe for pumping mud at high pressure in oil drilling and
exploration work.
TEMPERATURE: -20℃ ~ +121℃ (-4℉~+250℉), range Ⅰ/Ⅱ/Ⅲ, FSL 1/2
CONSTRUCTION:
Tube: Synthetic rubber, full flow
Reinforcement: High strength steel cable
Middle: Synthetic rubber
Cover: Abrasion, oil and weather resistant synthetic rubber
STANDARDS: API Spec. 7K, ABS
Product Details
APPLICATION: Flexible connection between the upper end of the standpipe and the top drive/swivel and between the
pump and the lower end of the standpipe for pumping mud at high pressure in oil drilling and
exploration work.
TEMPERATURE: -20℃ ~ +121℃ (-4℉~+250℉), range Ⅰ/Ⅱ/Ⅲ, FSL 1/2
CONSTRUCTION:
Tube: Synthetic rubber, full flow
Reinforcement: High strength steel cable
Middle: Synthetic rubber
Cover: Abrasion, oil and weather resistant synthetic rubber
pump and the lower end of the standpipe for pumping mud at high pressure in oil drilling and
exploration work.
TEMPERATURE: -20℃ ~ +121℃ (-4℉~+250℉), range Ⅰ/Ⅱ/Ⅲ, FSL 1/2
CONSTRUCTION:
Tube: Synthetic rubber, full flow
Reinforcement: High strength steel cable
Middle: Synthetic rubber
Cover: Abrasion, oil and weather resistant synthetic rubber
STANDARDS: API Spec. 7K, ABS
We can produce rubber acid Frac Hose (acid Frac Hose, Frac Hose, acid frack hose) to instead of the iron pipe, please check A801F item.
acid fracturing hose, acid Frac Hose, Frac Hose, frack hose, acid frack hose.
API 7K, API 16C, mud and cement hose, rotary drilling and vibrator hose, choke and kill hose, BOP control hose, slim hole rotary hose, Kelly hose, flange, hammer union.
