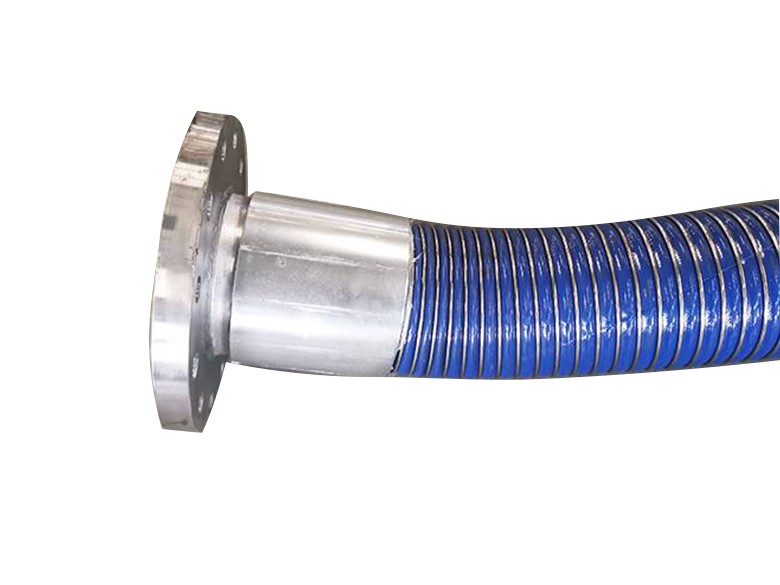

PETROLEUM COMPOSITE HOSE
SUCTION & DISCHARGE COMPOSITE HOSE TRANSFERS FUEL OIL
Suction & discharge composite hose is applied to the suction and discharge of fuel oil products such as gasoline, diesel, liquefied petroleum gas (LPG), etc. It has good antistatic properties and can withstand high pressure, abrasion and high temperature. In the suction or discharge operation, the inner coil of the hose supports hose wall to prevent hose from collapsing under the action of suction. The outer coil gives the hose resistance to pressure, protecting the hose from external wear and tear.
Product Details
Details
-
Structure: Suction & discharge composite hose is composed of four parts: inner wire, cover, liner and outer wire
- Inner Wire: Galvanized steel or 304 or 316L stainless steel
- Cover: PP fabrics and films with an abrasion resistant PVC coated fabric cover
- Liner: Combination of multiple piles of PP films and PE vapour barriers
- Outer Wire: High tensile galvanized steel or 304 or 316L stainless steel
- Temperature Range: -40 °C to +110 °C
- Safety Factor: 3:1
-
Features
- Light and flexible, suitable for places with high mobility, and can be used flexibly in narrow workplaces
- Good pressure resistance ability to positive and negative pressure
- Acid and alkali resistance, can convey various acids, alkalis, solvents and petroleum products
- Excellent antistatic property
Application
- Heavy duty suction and discharge transfer of petroleum products in road and rail tanker
- Handle distillates which are lightweight, including gasoline, aromatics, MTBE and MEK, and etc.
- Liquefied Petroleum Gas (LPG)
- Cooking oil and vegetable oil

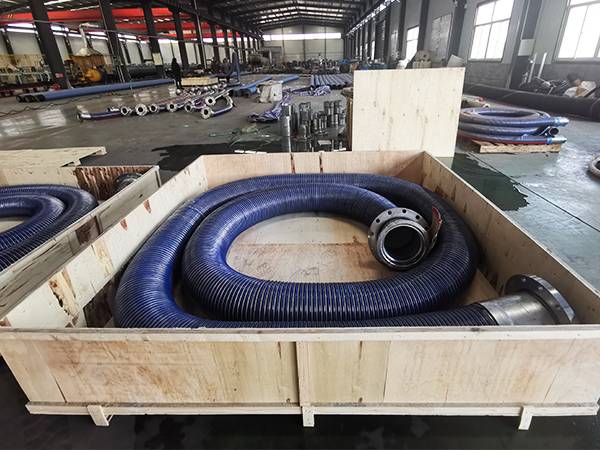

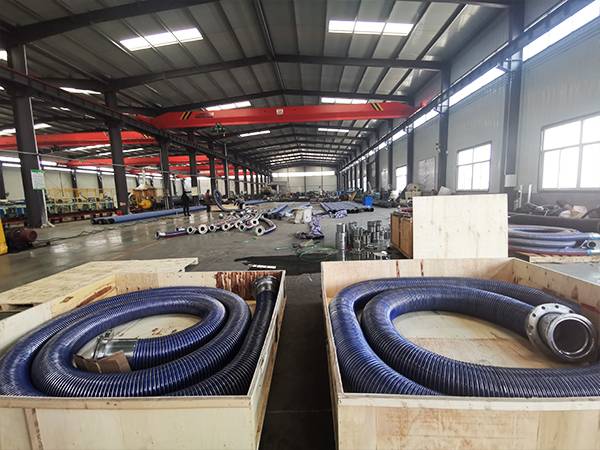

Processing & Packaging
