API-7K Rotary Drilling and Vibrator Hose

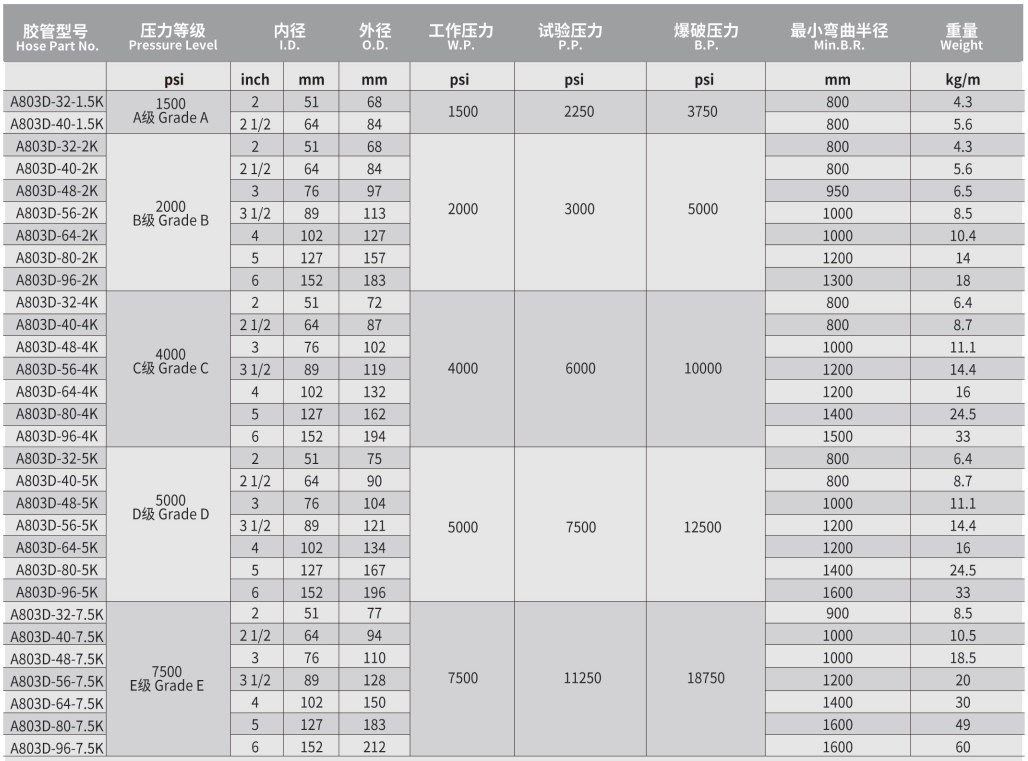

API-7K Rotary Drilling and Vibrator Hose A803D
A803D
Standard: API SPEC. 7K FSL 1 - FSL 2 | ABS | ISO 6807 | GOST 28618 | GB/T 24145
Construction:
Tube: super abrasion resistant resin and synthetic rubber, full flow,
Reinforcement: multi-layer of high tensile super flexible spiral steel wire,
Middle: synthetic rubber,
Cover: abrasion and weather resistant synthetic rubber,
Connectors: swaged fittings, integral union or flange
Application: Flexible connection between the upper end of the standpipe and the top drive/swivel and between the pump and the lower end of the standpipe for pumping mud at high pressure in oil drilling and exploration work
Temperature: -20℃ ~ +121℃（-4℉~+250℉）
We can produce rubber acid Frac Hose (acid Frac Hose, Frac Hose, acid frack hose) to instead of the iron pipe, please check A801F item.
acid fracturing hose, acid Frac Hose, Frac Hose, frack hose, acid frack hose.
API 7K, API 16C, mud and cement hose, rotary drilling and vibrator hose, choke and kill hose, BOP control hose, slim hole rotary hose, Kelly hose, flange, hammer union.
Rotary Drilling and Vibrator Hose
A803D
Standard: API SPEC. 7K FSL 1 - FSL 2 | ABS | ISO 6807 | GOST 28618 | GB/T 24145
Construction:
Tube: super abrasion resistant resin and synthetic rubber, full flow,
Reinforcement: multi-layer of high tensile super flexible spiral steel wire,
Middle: synthetic rubber,
Cover: abrasion and weather resistant synthetic rubber,
Connectors: swaged fittings, integral union or flange
Application: Flexible connection between the upper end of the standpipe and the top drive/swivel and between the pump and the lower end of the standpipe for pumping mud at high pressure in oil drilling and exploration work
Temperature: -20℃ ~ +121℃（-4℉~+250℉）
We can produce rubber acid Frac Hose (acid Frac Hose, Frac Hose, acid frack hose) to instead of the iron pipe, please check A801F item.
acid fracturing hose, acid Frac Hose, Frac Hose, frack hose, acid frack hose.
API 7K, API 16C, mud and cement hose, rotary drilling and vibrator hose, choke and kill hose, BOP control hose, slim hole rotary hose, Kelly hose, flange, hammer union.
