Floating Hose
Floating Hose, One End Reinforced Half Floating
One end reinforced half floating hose is
used for connecting with the single point
mooring buoy system or CALM (catenary
anchor leg mooring) buoy
system to transport crude oil and
petroleum fluids between FPSO and tanker.
During the production, the marine floating hose can be tested according to either the GMPHOM 2009 quality standards
or the standards specified by the customer, ensuring high safety and performance of marine hoses for using in the marine
environment.
Features
1. Specially designed to connect with the pipeline system of a floating production storage and offloading (FPSO) unit
2. Floating hoses available with single and double carcass design
3. Rated working pressure: 21 bar
4. Minimum reserve buoyancy: 20% or as requested
5. Electrical continuity: discontinuous or as requested
6. The one end reinforced half floating hose comes with a reliable and efficient leak detection and indication system.
The detector will quickly respond to the leak after detecting the damage of first carcass. In this case, the operator can
remove the damaged hose in a quick manner. This greatly reduces economic loss and impact on marine environment.

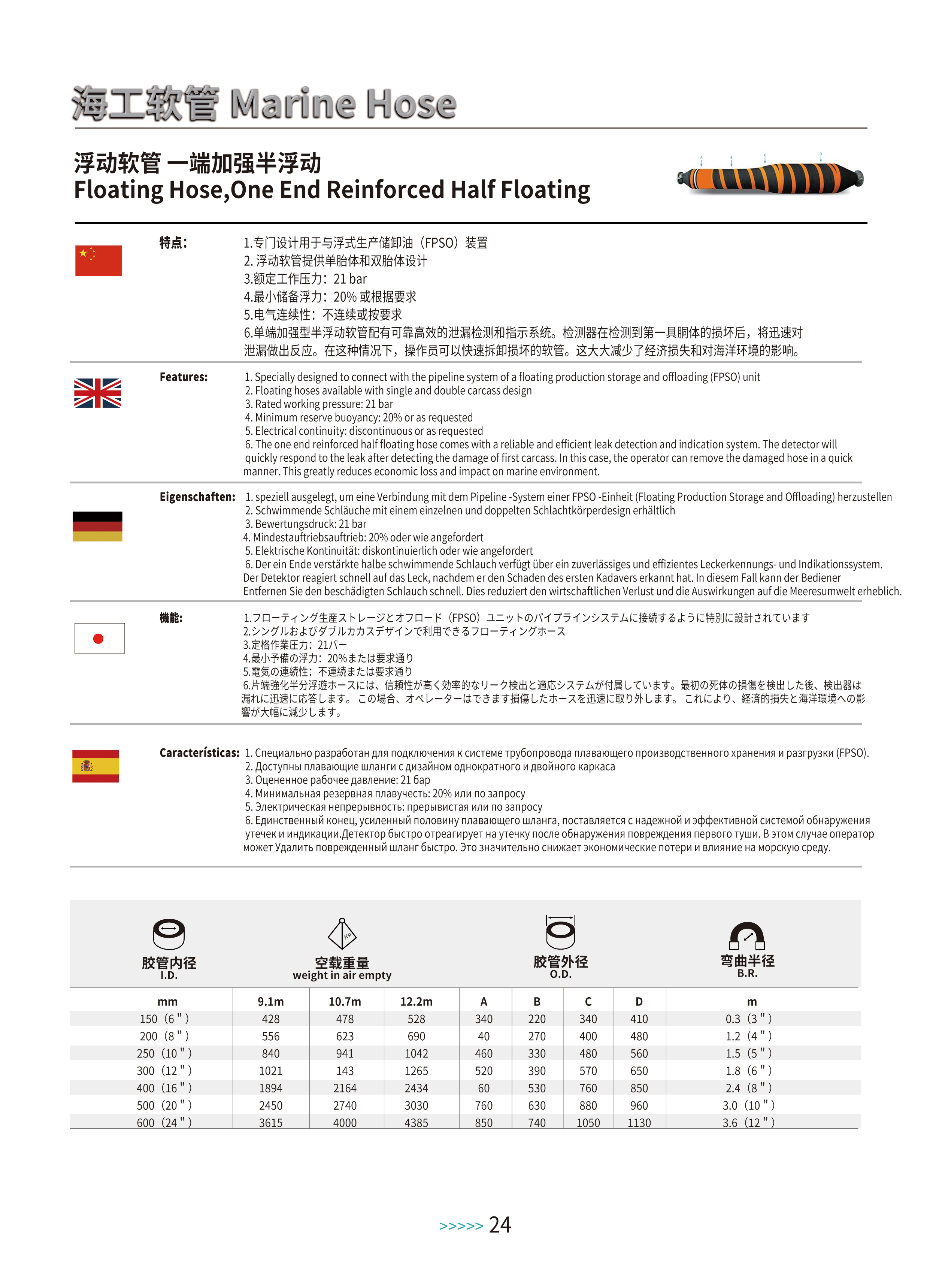

Technical Parameters
(Following data set under rated working pressure of 15, 19 or 21 bar)
Note: Specifications can be made upon request.
