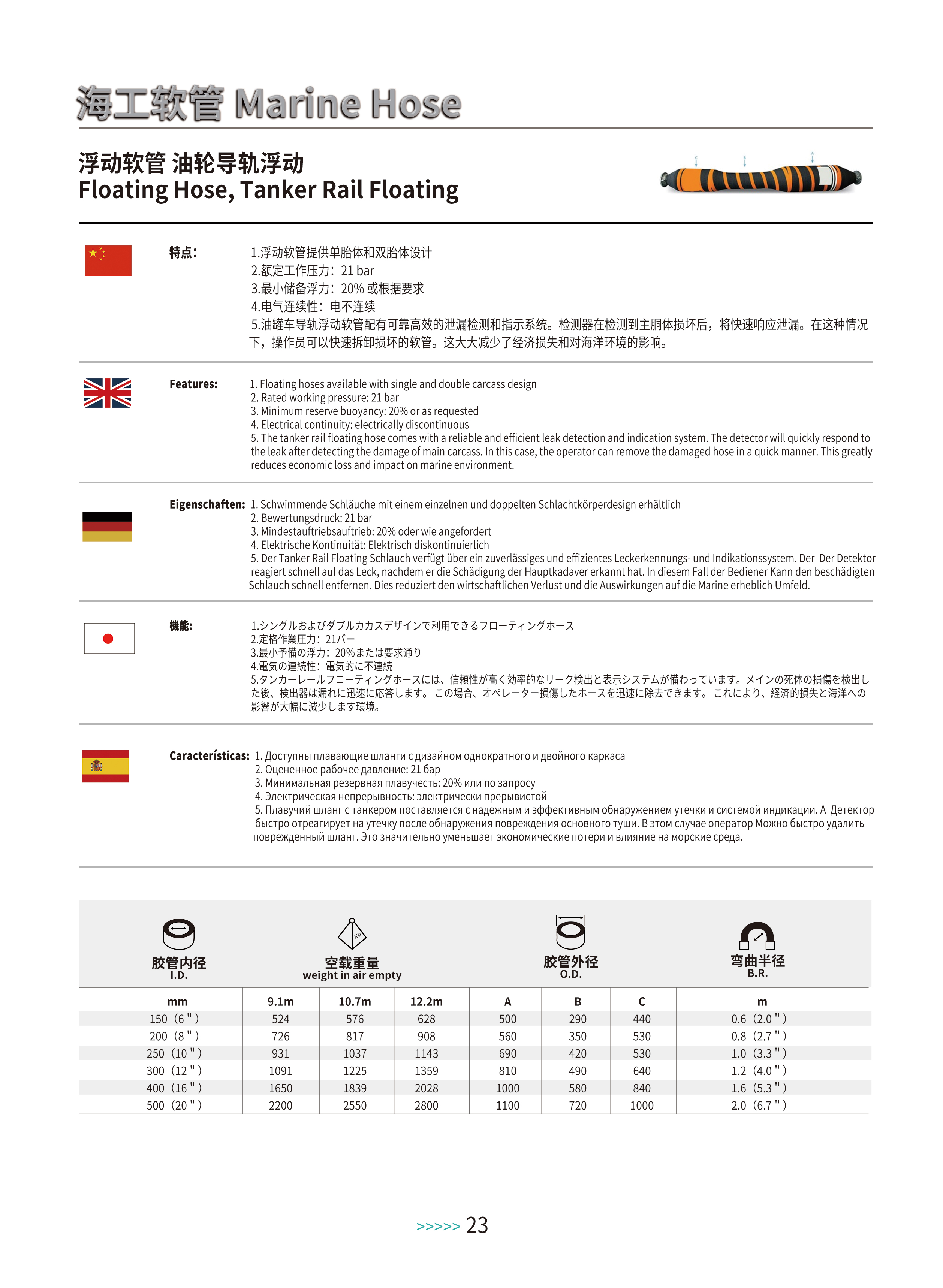

Floating Hose
Floating Hose, Tanker Rail Floating
Installed on the ship's side, tanker rail
floating hose is designed for connecting
with pipeline end manifolds
(PLEMs) of a floating production storage
offloading (FPSO) unit.
During the production, the marine floating hose can be tested according to either the GMPHOM 2009 quality
standards or the standards specified by the customer, ensuring high safety and performance of marine hoses
for using in the marine environment.
Features
1. Floating hoses available with single and double carcass design
2. Rated working pressure: 21 bar
3. Minimum reserve buoyancy: 20% or as requested
4. Electrical continuity: electrically discontinuous
5. The tanker rail floating hose comes with a reliable and efficient leak detection and indication system. The
detector will quickly respond to the leak after detecting the damage of main carcass. In this case, the operator
can remove the damaged hose in a quick manner. This greatly reduces economic loss and impact on marine
environment.
Technical Parameters
Note: Specifications can be made upon request.
